How to Choose Mining Camp Accommodation and Buildings for Remote Projects

The site may be hundreds of kilometers from the nearest city. Local labor can be limited. Transportation routes may be difficult. The workforce may increase rapidly during construction and decrease again once the mine enters normal operation.

For these reasons, choosing mining camp accommodation should not begin with one question:

Which building is the cheapest?

A better approach is to start with the project itself.

How many workers need accommodation?
How long will the camp operate?
How difficult is transportation to the site?
How much installation labor is available locally?
Does the project need only dormitories, or also offices, dining halls, sanitary facilities, medical rooms and warehouses?

At VICDOWEX, we recommend treating a mining camp as a complete project facility system, rather than selecting one building type for every function.

1. Start with Workforce Requirements

Before choosing a modular building system, the first step is to understand who will live and work in the camp.

A 100-person exploration camp and a 500-person mine construction camp may both require worker accommodation, but the room layouts, sanitary requirements and supporting facilities can be completely different.

Project teams should first define:

• Total workforce capacity
• Number of workers per room
• Worker and management accommodation standards
• Shared or private bathrooms
• Male and female accommodation requirements where applicable
• Shift arrangements
• Construction and operation periods
• Expected future expansion

For example, a construction-stage camp may use four-person dormitory rooms to increase capacity, while supervisors and long-term staff may require twin rooms or private accommodation.

The number of buildings should therefore be calculated from the required room schedule, not simply from the maximum number of beds that can fit inside one module.

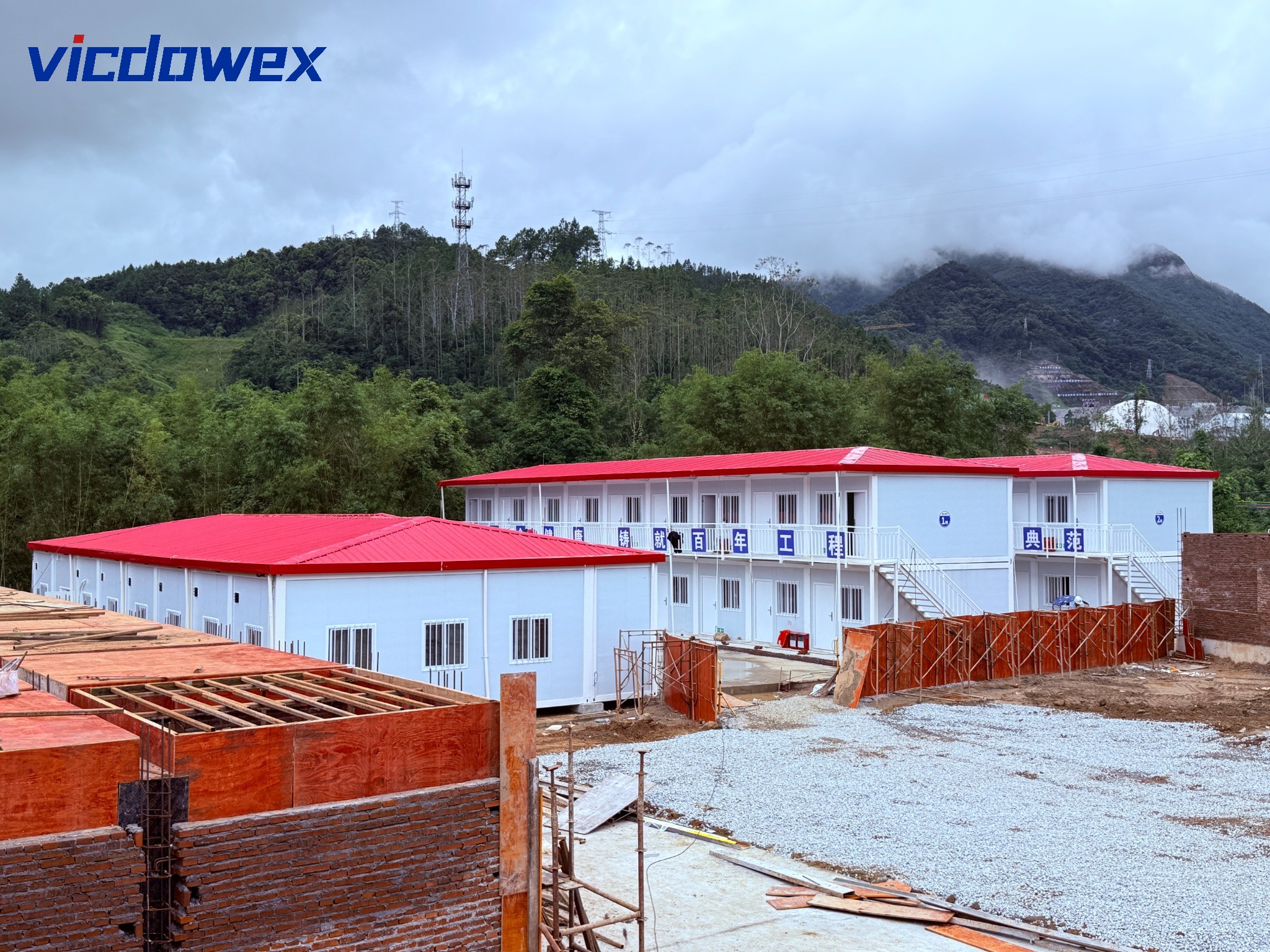

[Suggested Image 1: Large remote mining camp overview]

Recommended ALT: modular mining camp accommodation for remote project

2. A Mining Camp Is More Than Worker Accommodation

A complete mining camp normally includes far more than dormitories.

Typical functional areas may include:

Accommodation

• Worker dormitories
• Staff accommodation
• Supervisor rooms
• Management accommodation

Administration

• Project offices
• Meeting rooms
• Reception areas
• Engineering offices

Daily Living Facilities

• Dining halls
• Staff canteens
• Kitchens
• Laundry rooms
• Recreation spaces

Health and Sanitary Facilities

• Toilets
• Shower rooms
• Changing rooms
• Medical rooms
• First-aid clinics

Operational Support

• Warehouses
• Equipment storage
• Maintenance buildings
• Security rooms

Different spaces have different requirements for room size, structural span, privacy, insulation and long-term use.

That is why one mining project may need several different building systems.

3. Flat Pack Container Houses for Standardized Camp Modules

Flat Pack Container Houses are particularly suitable for projects requiring large numbers of repeatable rooms.

• Worker dormitories
• Site offices
• Meeting rooms
• Medical rooms
• Security rooms
• Toilet and shower modules
• Laundry rooms

A typical VICDOWEX flat pack container module is approximately 6055 × 2990 × 2896 mm, providing around 18 m² of modular space.

Units can be used individually or combined into larger buildings.

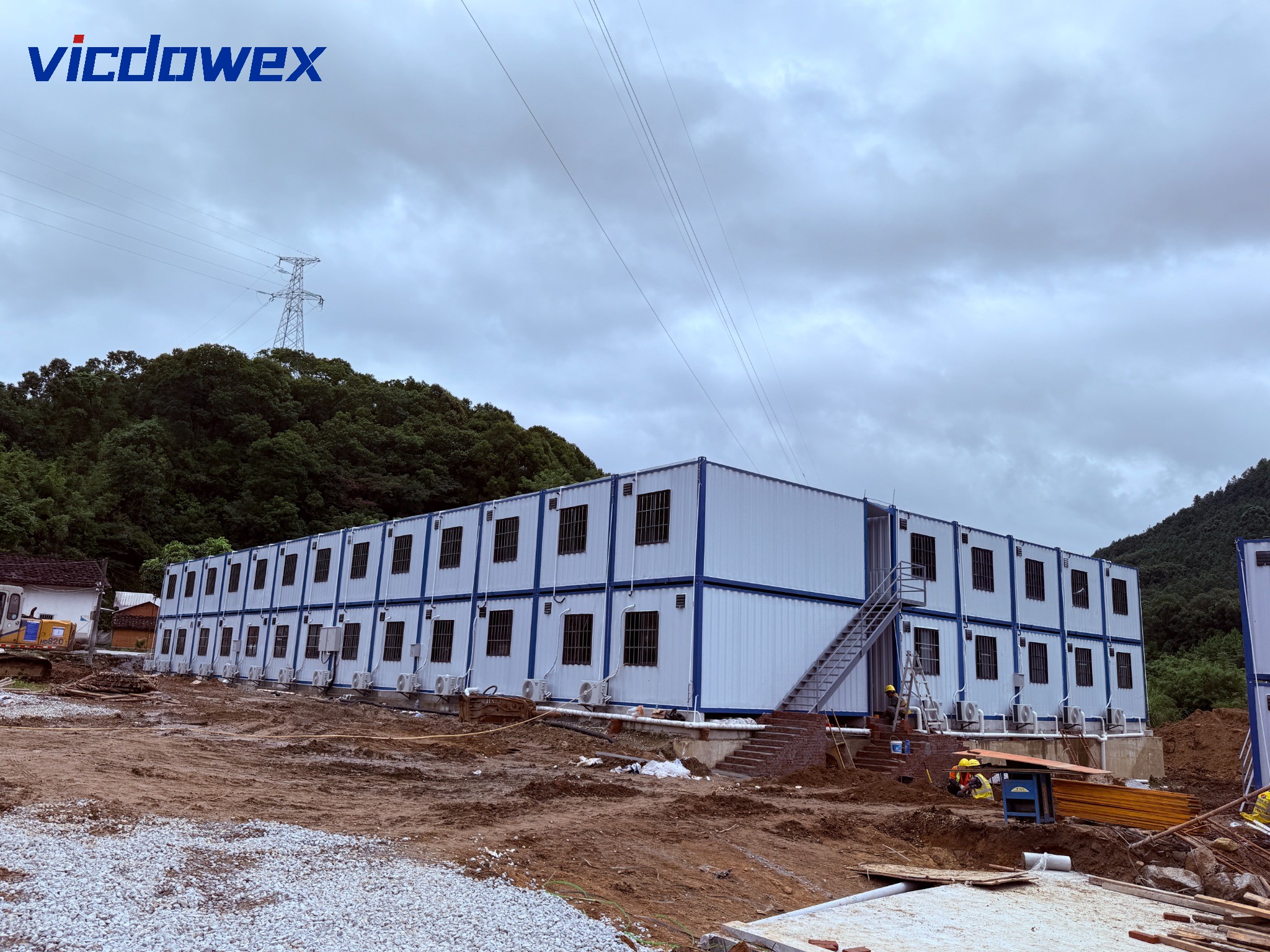

[Suggested Image 2: Two-storey flat pack worker accommodation]

Recommended ALT: flat pack container house worker accommodation mining camp

4. Quick Assemble Containers When Shipping Efficiency Matters

Where shipping volume is an important consideration, Quick Assemble or Detachable Container Houses may provide a practical option.

Depending on the final configuration and packing method, a 40HQ container can typically load approximately 18–22 sets of VICDOWEX quick assemble container units.

Higher packing efficiency usually means more assembly work at the destination.

5. Folding Container Houses for Rapid Deployment

For situations requiring fast-deployment, Folding Container Houses provide a solution with improved transportation efficiency, with more than 30 units possible per 40HQ depending on specification.

6. K-Type Prefabricated Buildings for Cost-Effective Large Facilities

K-Type buildings use standardized steel components and sandwich panel enclosure systems, particularly suitable for large accommodation capacity and fast expansion.

[Suggested Image 3: Large K-Type dormitory or camp building]

Recommended ALT: k type prefabricated building mining worker dormitory

7. T-Type Prefabricated Buildings for Long-Term Camp Facilities

VICDOWEX T-Type Prefabricated Buildings provide more flexibility for larger functional spaces and long-term use, such as project headquarters and dining halls.

8. Steel Structure Buildings for Mining Support Facilities

For warehouses, workshops and maintenance buildings that need larger structural spans and different load requirements, VICDOWEX provides Steel Structure Building solutions.

9. Transportation Should Be Considered Before Ordering

How much usable project space can each shipment create?

The correct choice depends on the entire logistics chain.

10. Installation Time Is More Than Assembly Time

When can the camp actually start operating?

Factory Production → Shipping → Inland Transport → Installation → MEP Connection → Commissioning

11. Match the Building System to the Project Duration

Different mining projects require different building strategies ranging from Short-Term Exploration to Long-Term Mining Operations.

12. Design the Building Around the Local Climate

VICDOWEX can provide different sandwich panel systems (EPS, Rock wool, PU) and thicknesses (50mm, 75mm, 100mm) to suit project environments from deserts to cold regions.

13. Compare Total Delivered Cost, Not Only Factory Price

Total Delivered Cost of Usable Project Space

14. Plan for Future Expansion

Modular construction is particularly suitable for phased development. The camp should be planned as one coordinated system.

Which VICDOWEX Building System Should You Consider?

FAQ

What Is the Best Building for Mining Worker Accommodation?

There is no single best option for every project. The correct choice depends on workforce size, logistics, project duration, room standards and local installation conditions.

Can Mining Camp Buildings Be Relocated?

Many modular and prefabricated buildings can be dismantled, relocated or reused if planned during the initial design stage.

How Many Workers Can One Container Accommodate?

VICDOWEX recommends defining the required accommodation standard first and then calculating the number of modules.

Planning a Mining Camp Project?

Project Location + Workforce Capacity + Room Requirements + Climate Conditions + Required Facilities + Target Delivery Schedule
